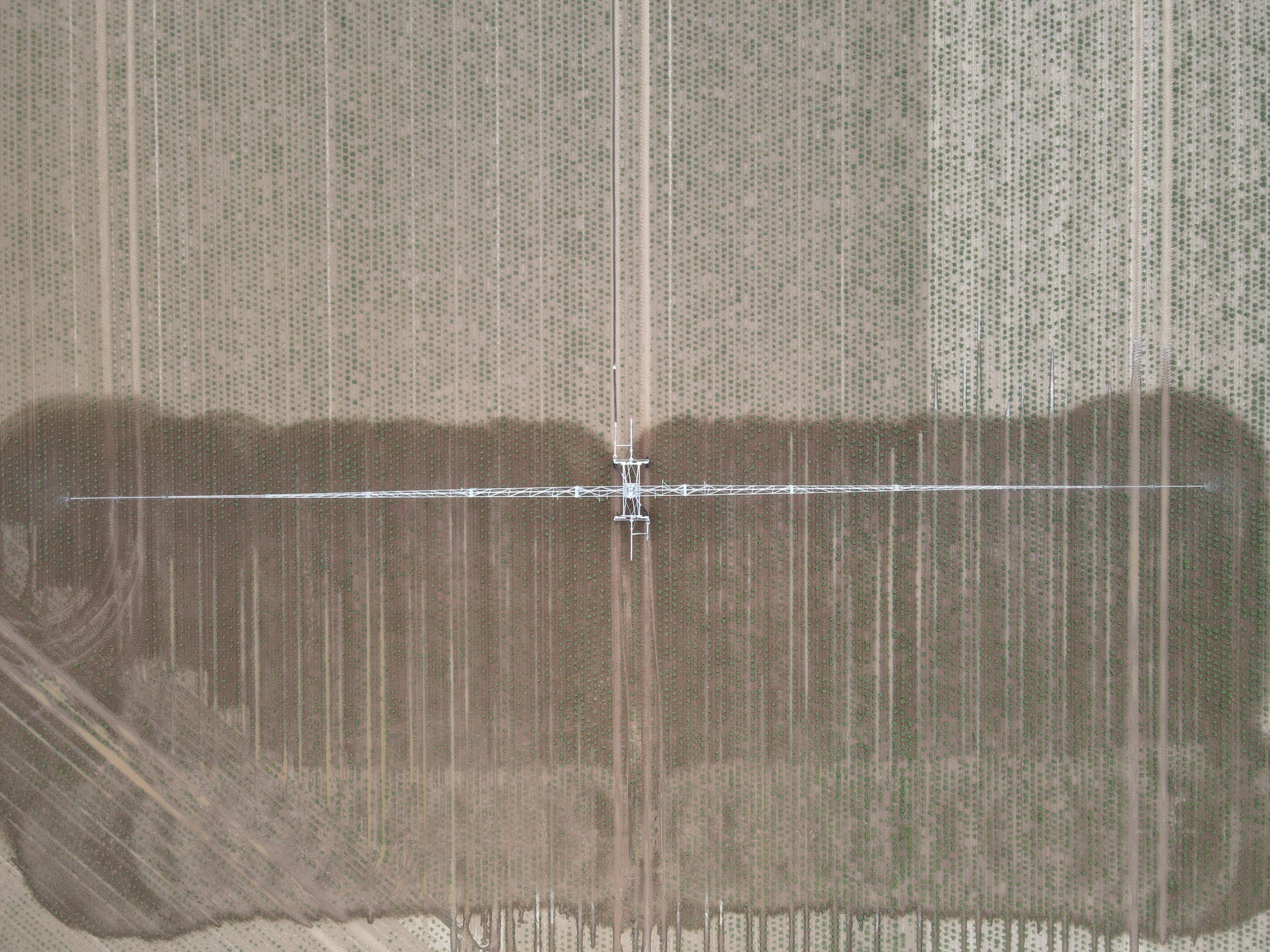

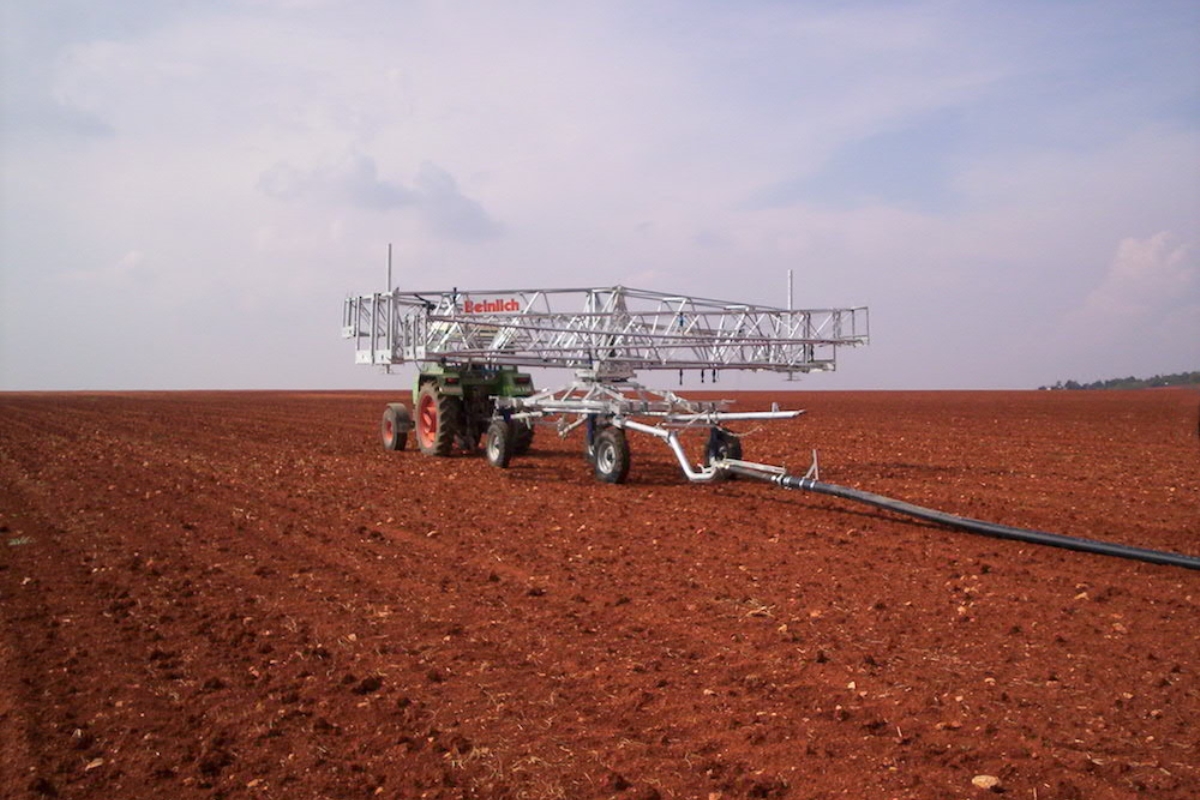

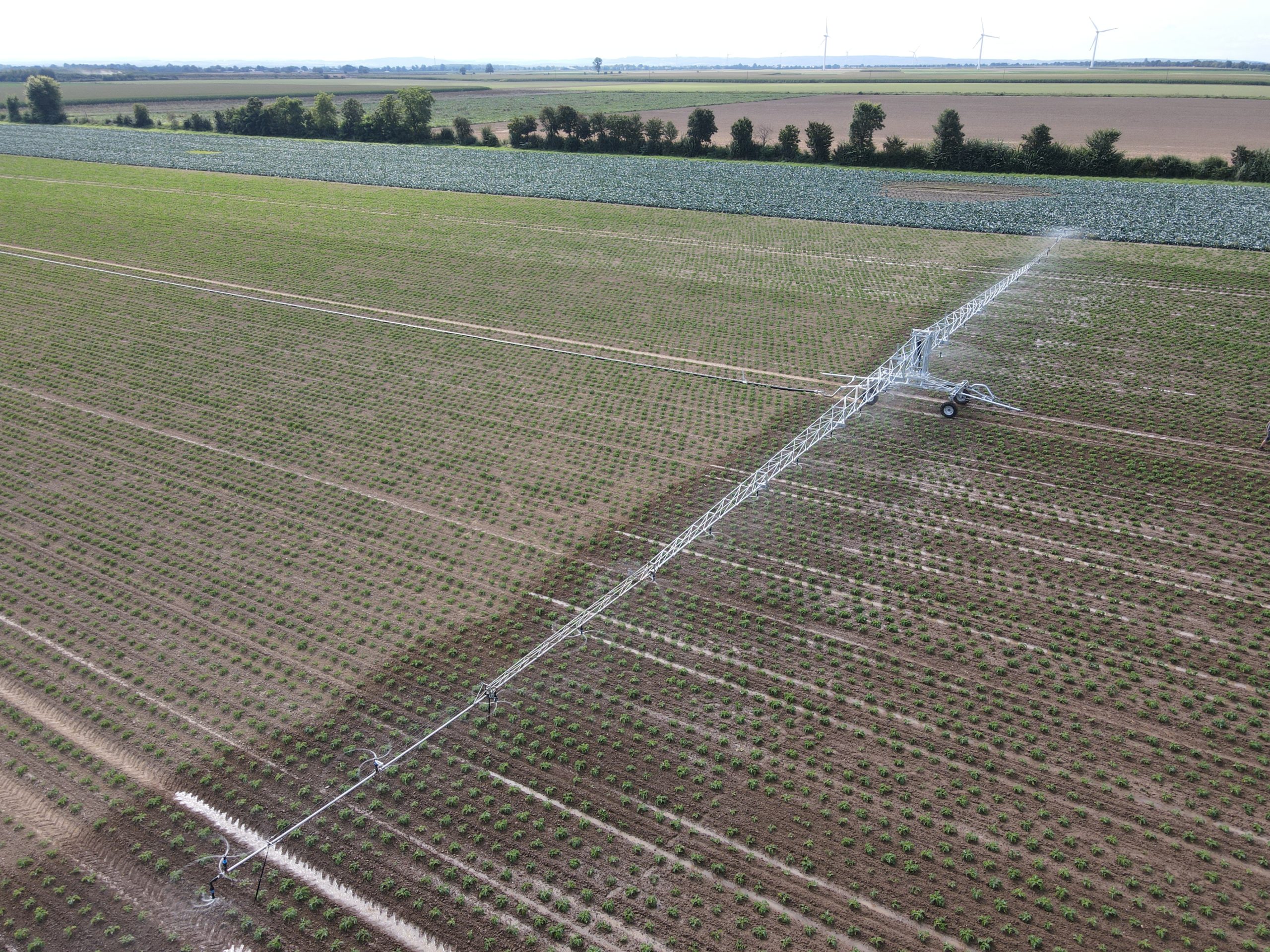

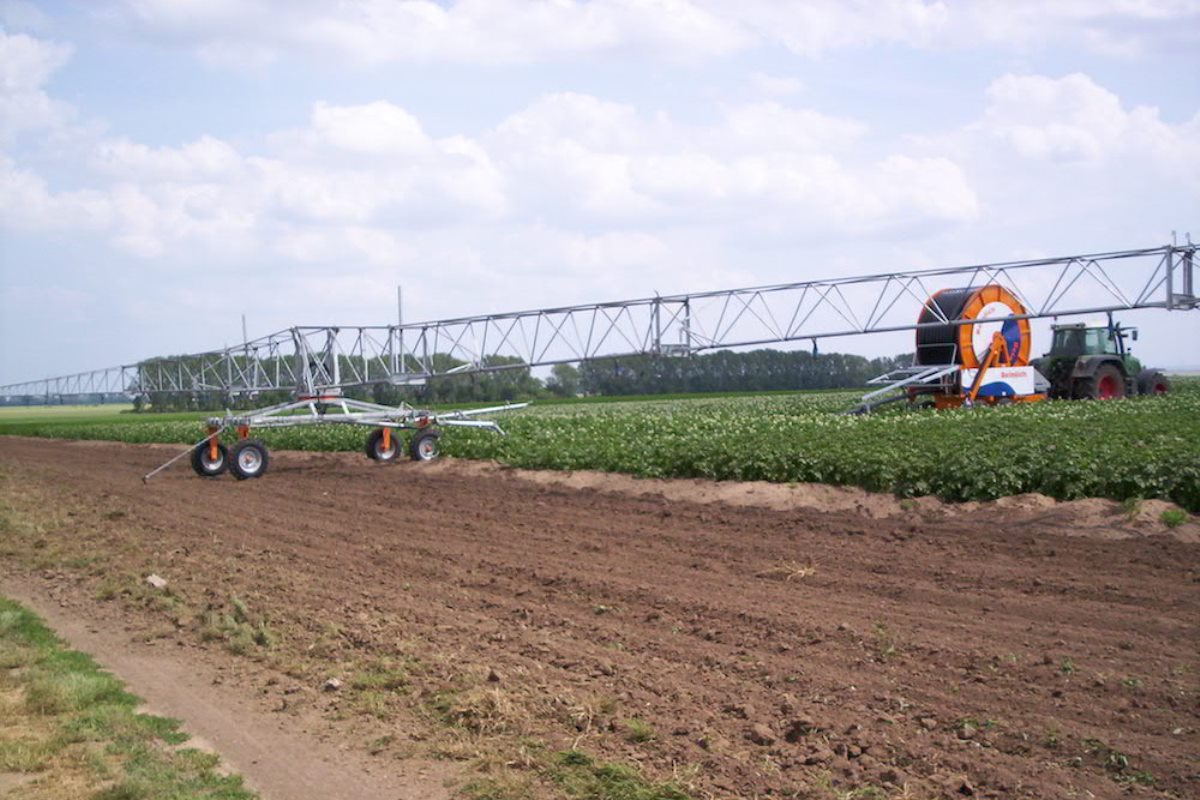

Boom R50 m, R64 m and R76 m

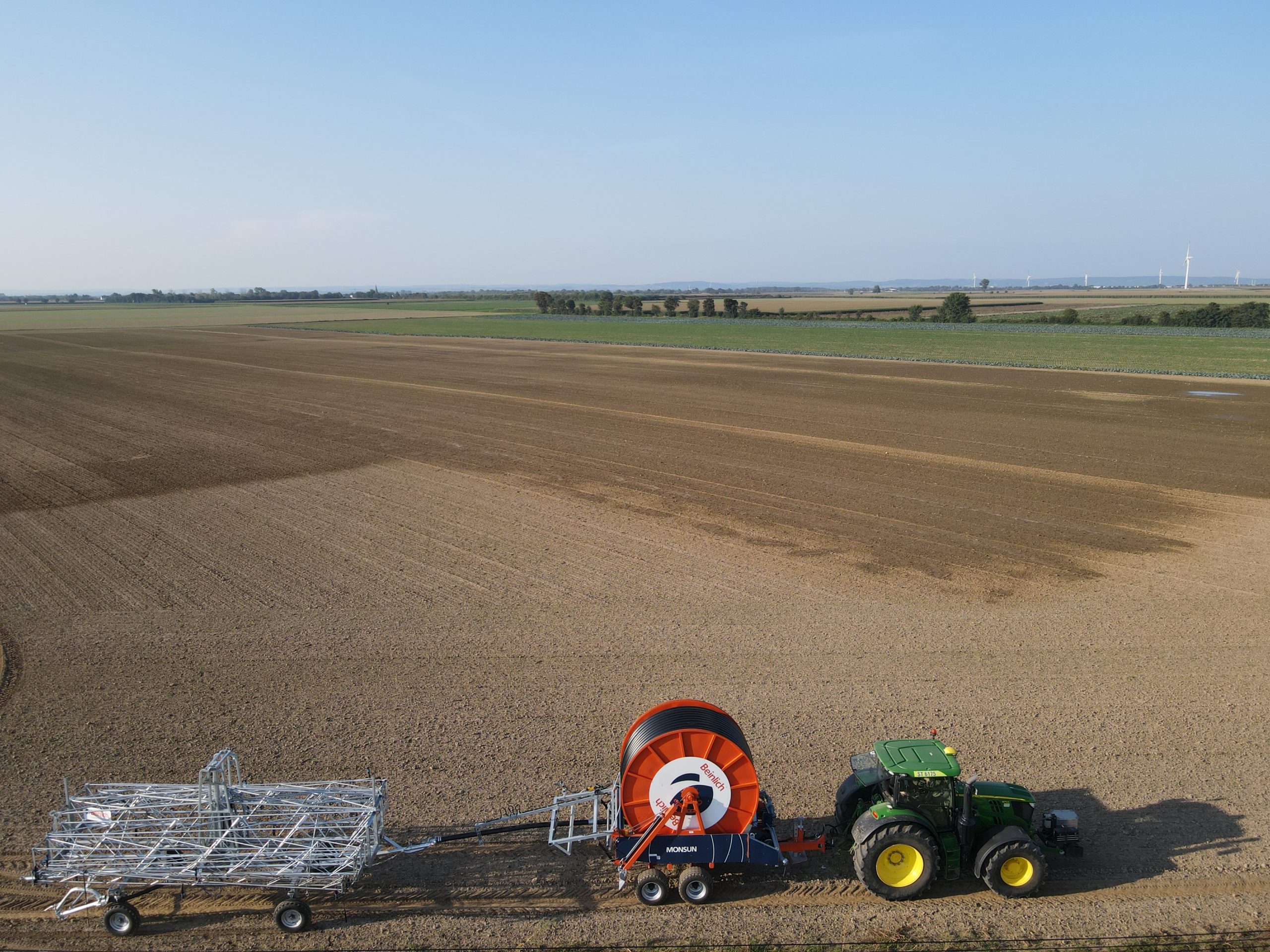

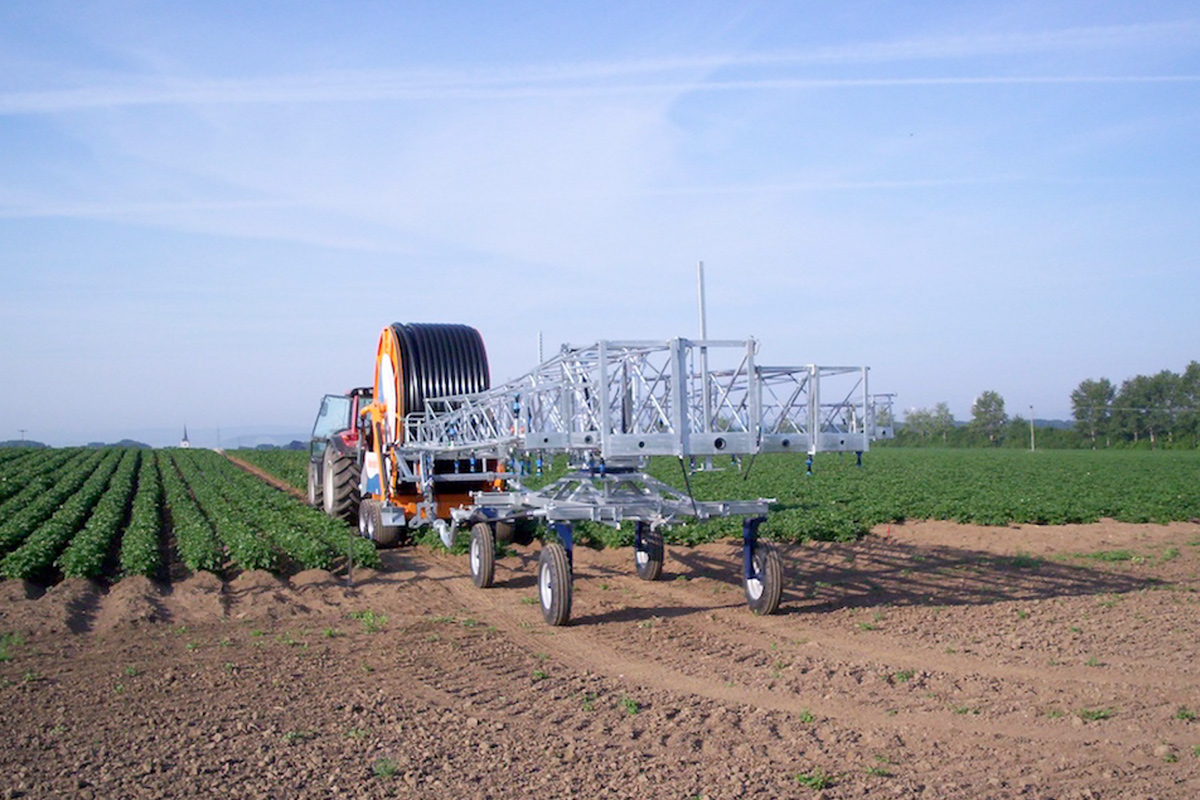

In vegetable and potato growing, booms are increasingly used alongside conventional hose reel irrigators. Their practical handling, stability and irrigation quality make them a strong alternative to conventional long-range nozzles. The main advantage is their efficiency: a modern Beinlich boom requires around 50% less pressure and reduces water use by 20–30%. Beinlich carries out research and development together with universities, institutes and international partners to use water resources more sustainably and cultivate even extremely dry areas efficiently. Key advantages:

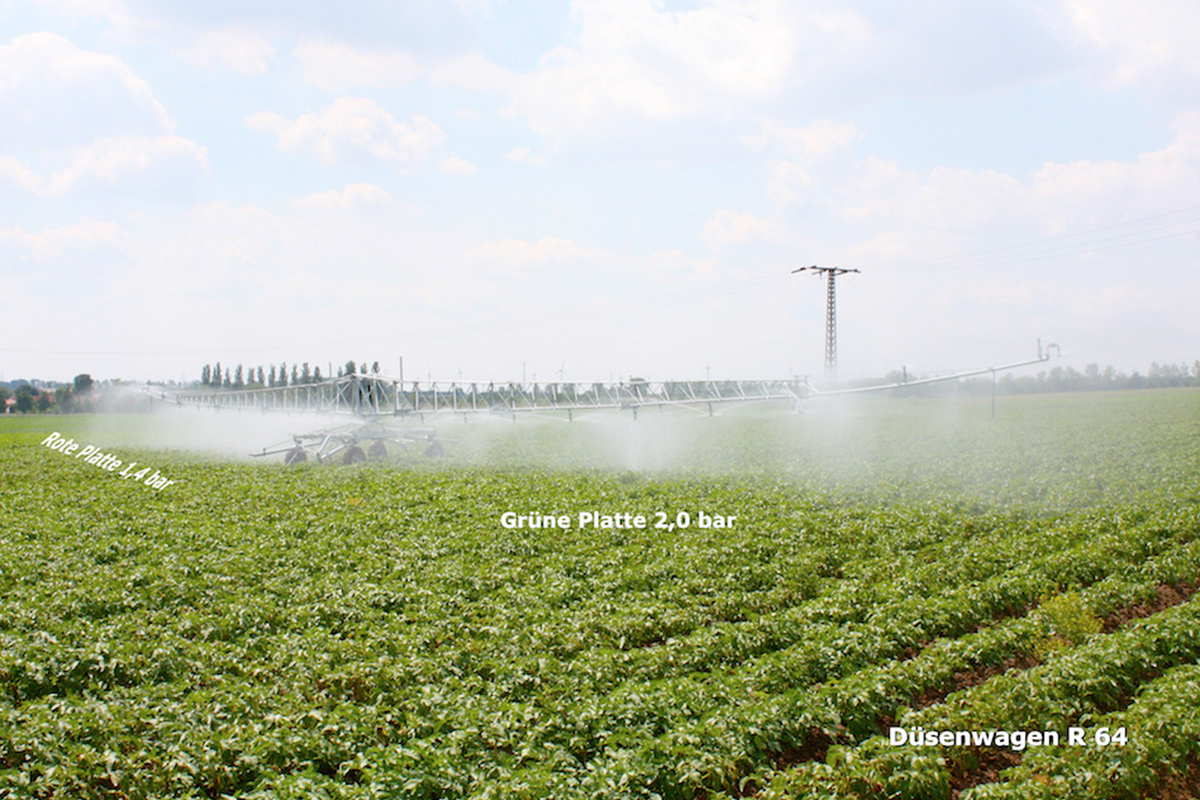

fine droplet sizes
low application height
low wind sensitivity
precise strip width
| Luxor 1″ geared end sprinkler, nozzles ∅ 9/10/12 mm |
| K1 Teso 8° 1″ end sprinkler, nozzles ∅ 9/10/12 mm |

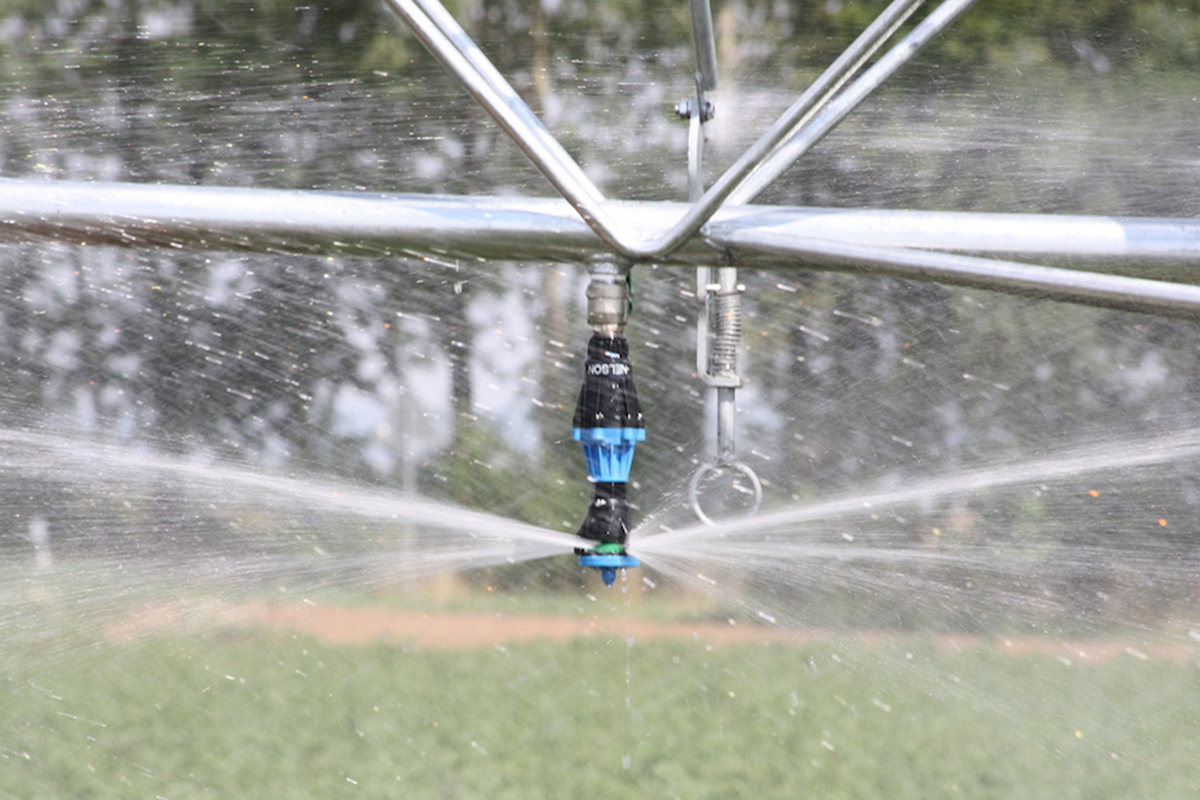

| 180° rotator end nozzle |

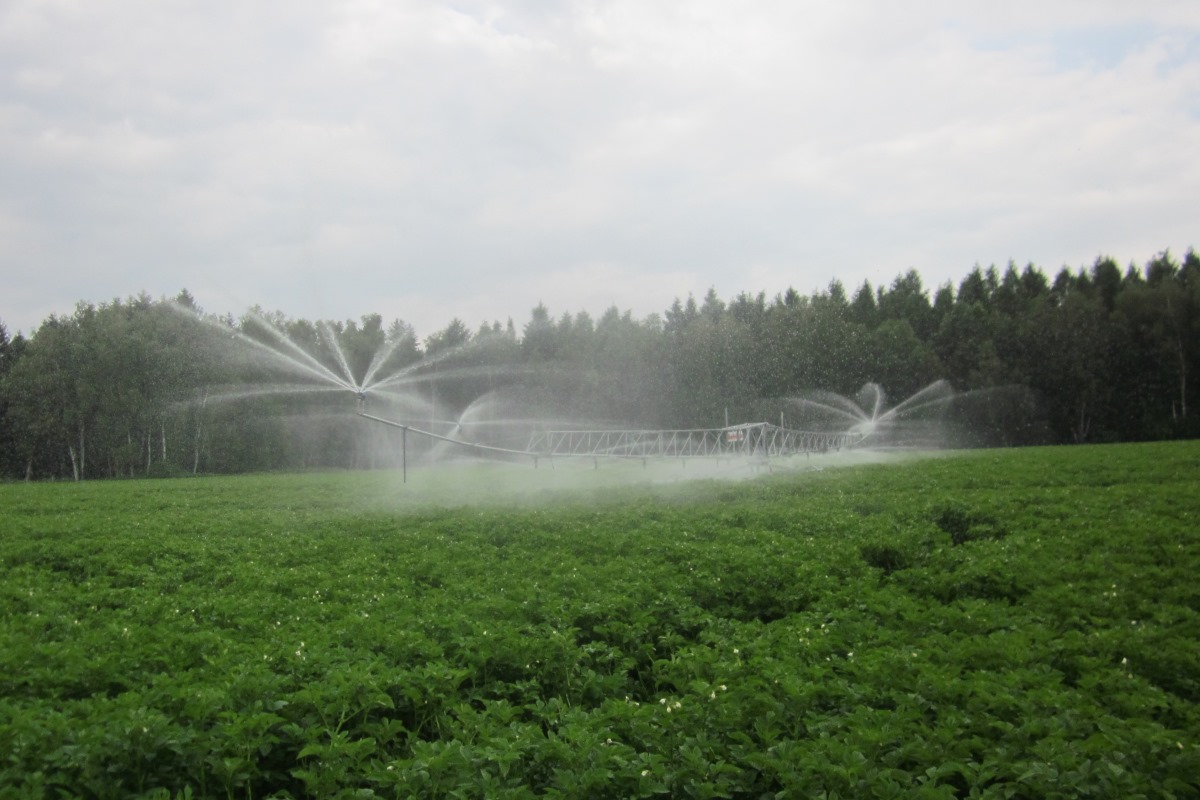

| R 55 A rotator end nozzle |

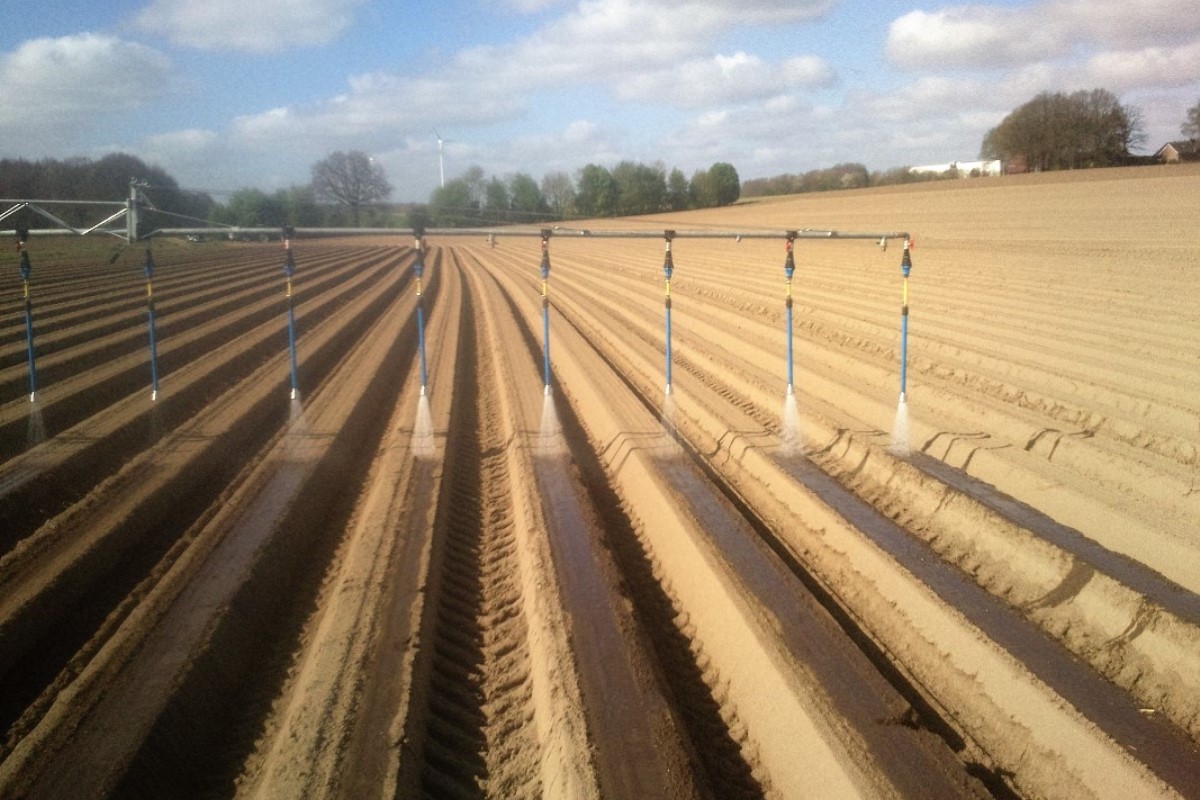

| drag hoses |
| end plate with ball valve |
| central PE pipe connection, front and rear |
| side PE pipe connection for tramline placement at front and rear, reversible, blanking cover |
| side PE pipe connection for tramline placement at front only |

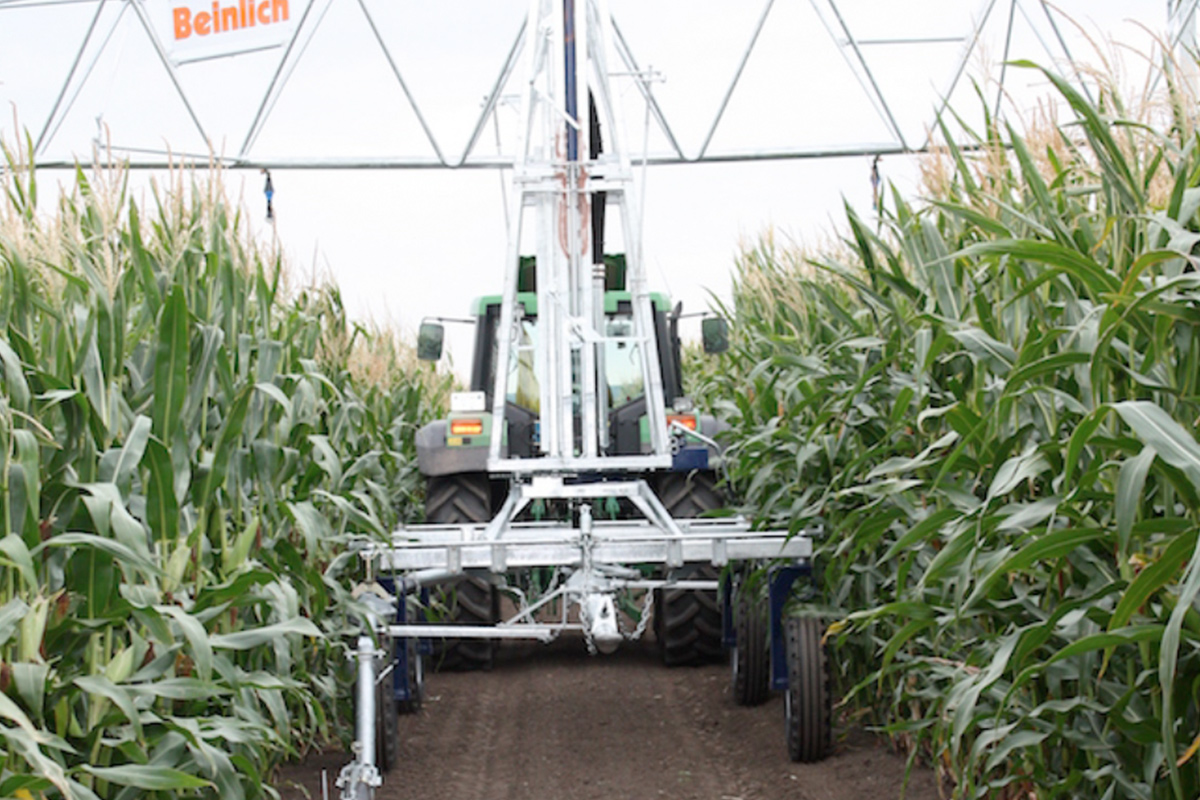

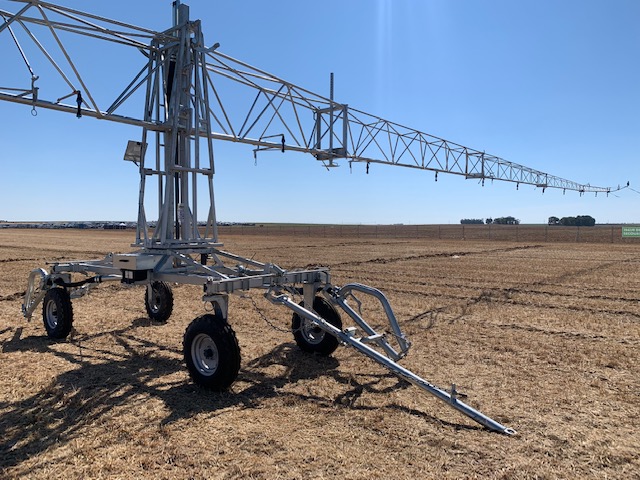

| hydraulic height adjustment for boom, up to 2.10 m or 3.10 m, with oil hand pump, electro-hydraulics or via hoses from the tractor |
| electro-hydraulic kit for slewing ring |
| lay-flat hose connection with special coupling for PE pipe |
| mounting device for rain gun, incl. 2 shut-off gate valves |
| mounting device for rain gun with automatic sprinkler valve |
| wide tyres (11.5-15.3-15), 5-hole rim and wheel holder |
| wide turf tyres (31/13.5-15), incl. wheel holder, only for central drawbar |
| end stop for mounting on PE pipe ∅ 100–125 mm |
| filter pipe with coupling for piping ∅ 89 mm |

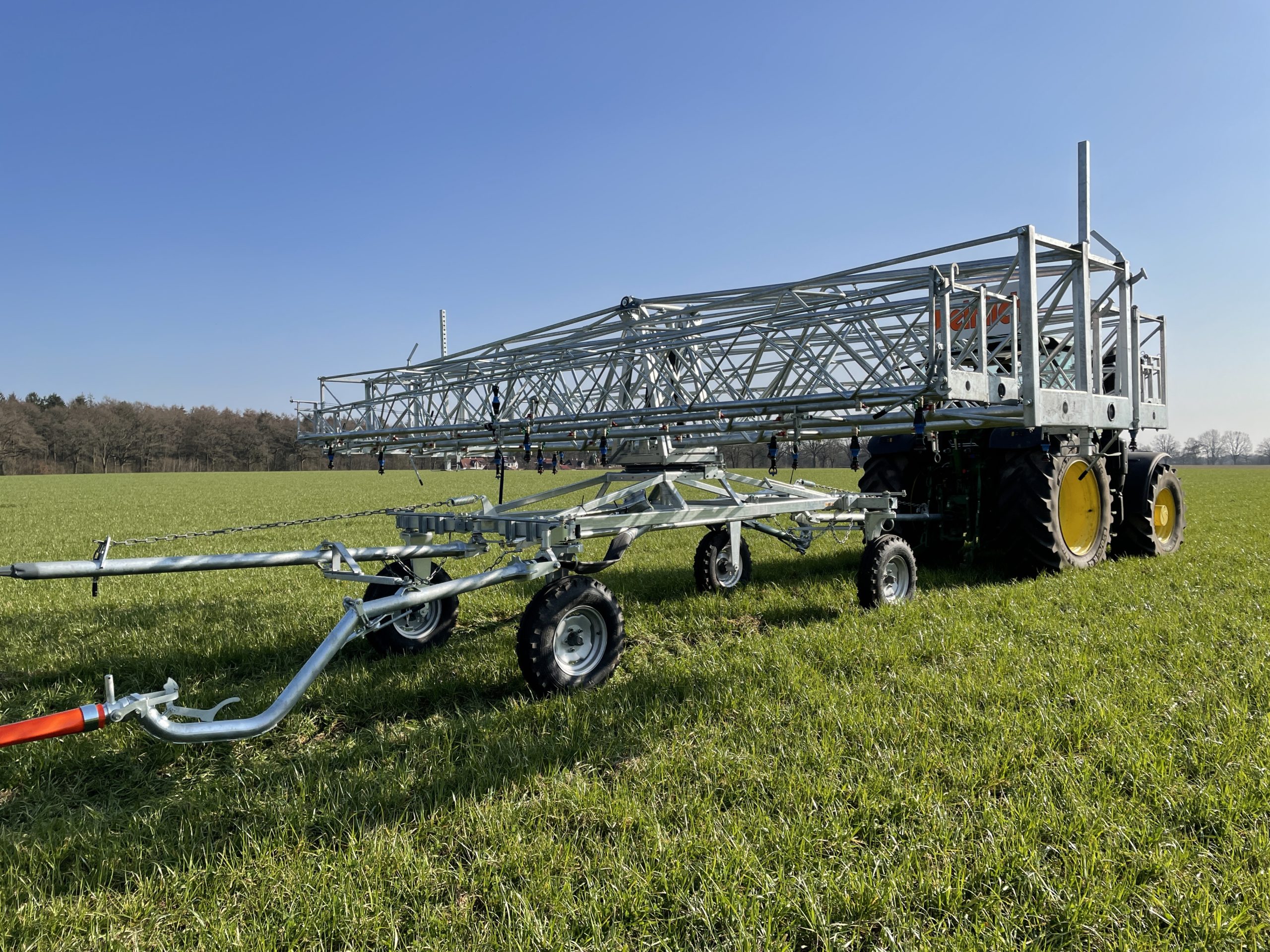

Boom R64 m
